Aqua Computer
To make the Aqua Computer "Farbwerk 360" or the "Farbwerk Nano" work with SignalRGB, it has to be configured correctly with the manufacturer's software first!
- Launch "aquasuite" with admin rights (right-click -> "Run as Administrator").

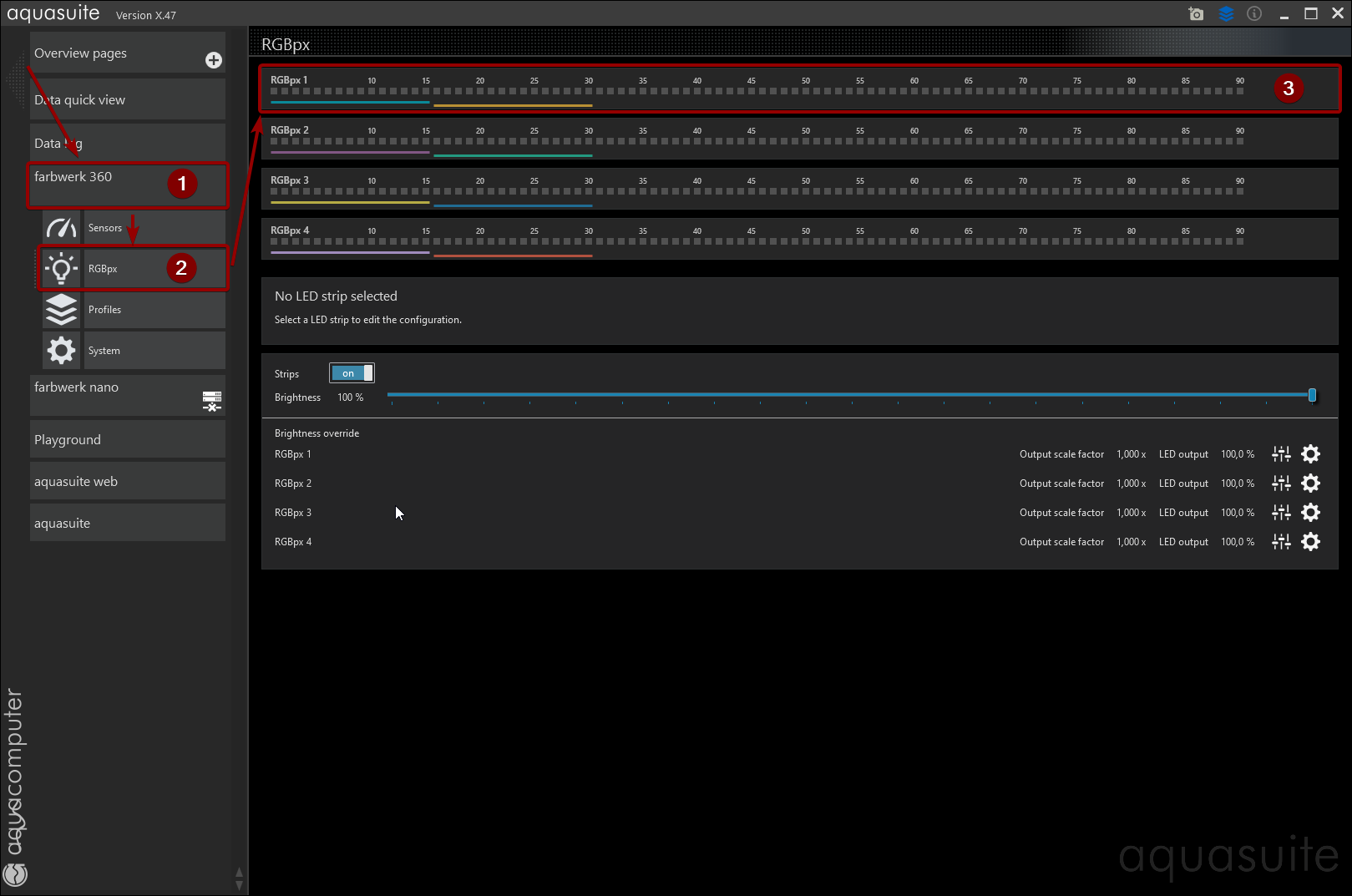

- Select "farbwerk 360" (or "nano") -> "RGBpx" in the left main menu and click the "RGBpx 1"-channel in the main window.
- Delete all "LED Controller" instances that might appear with selecting them and clicking the "X"-icon after that.
- Repeat the step above for "RGBpx 2", "RGBpx 3" and "RGBpx 4" (only applies to Farbwerk 360 as the Nano only has one channel).
- After deleting all "LED Controller" instances from all channels, select "RGBpx 1" again.

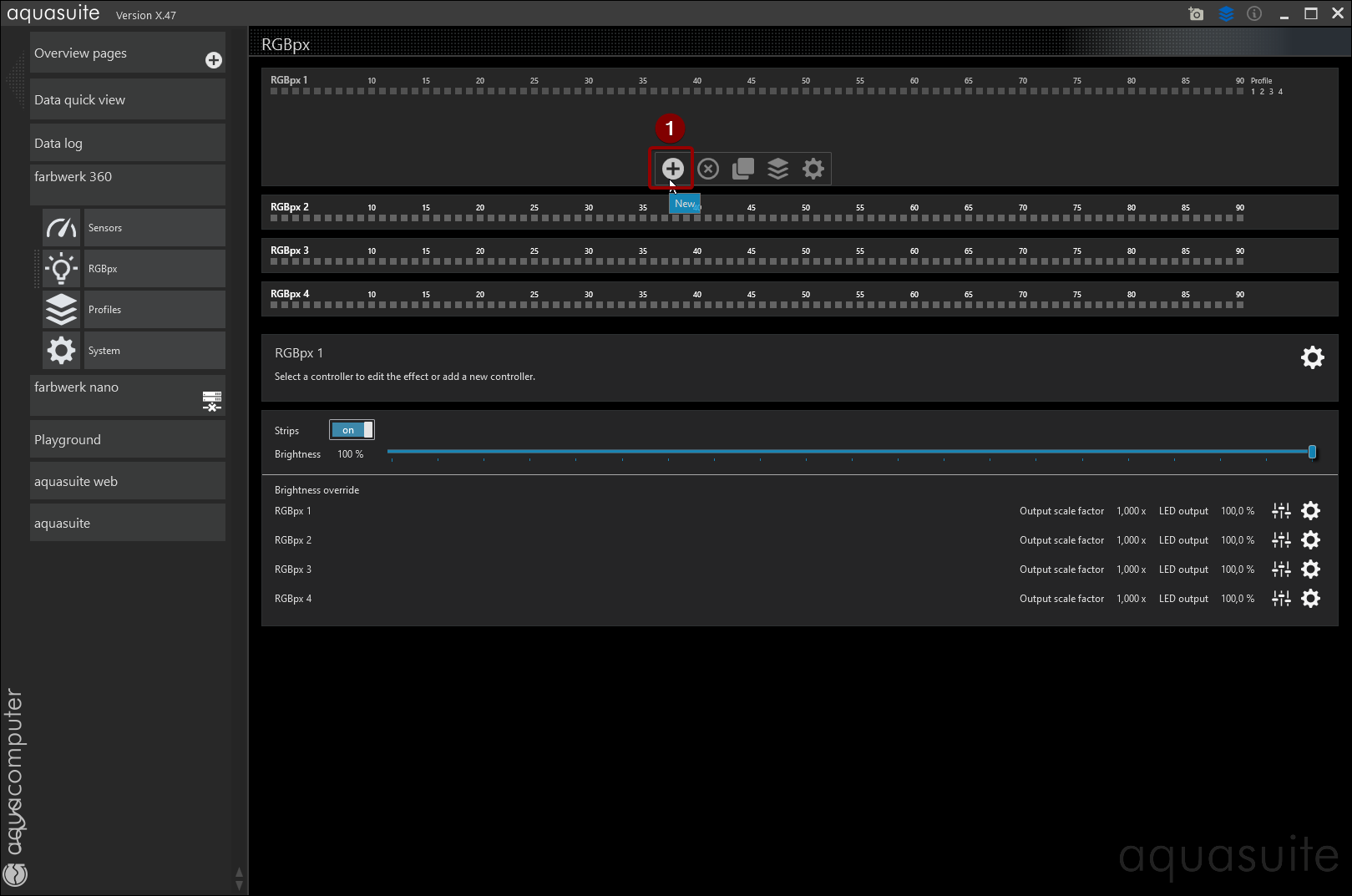

- Click the "+"-icon to create a new "LED Controller" instance on that channel.
- Select "AMBIENTpx" in the side panel that opens and confirm by clicking the "checkmark"-icon.

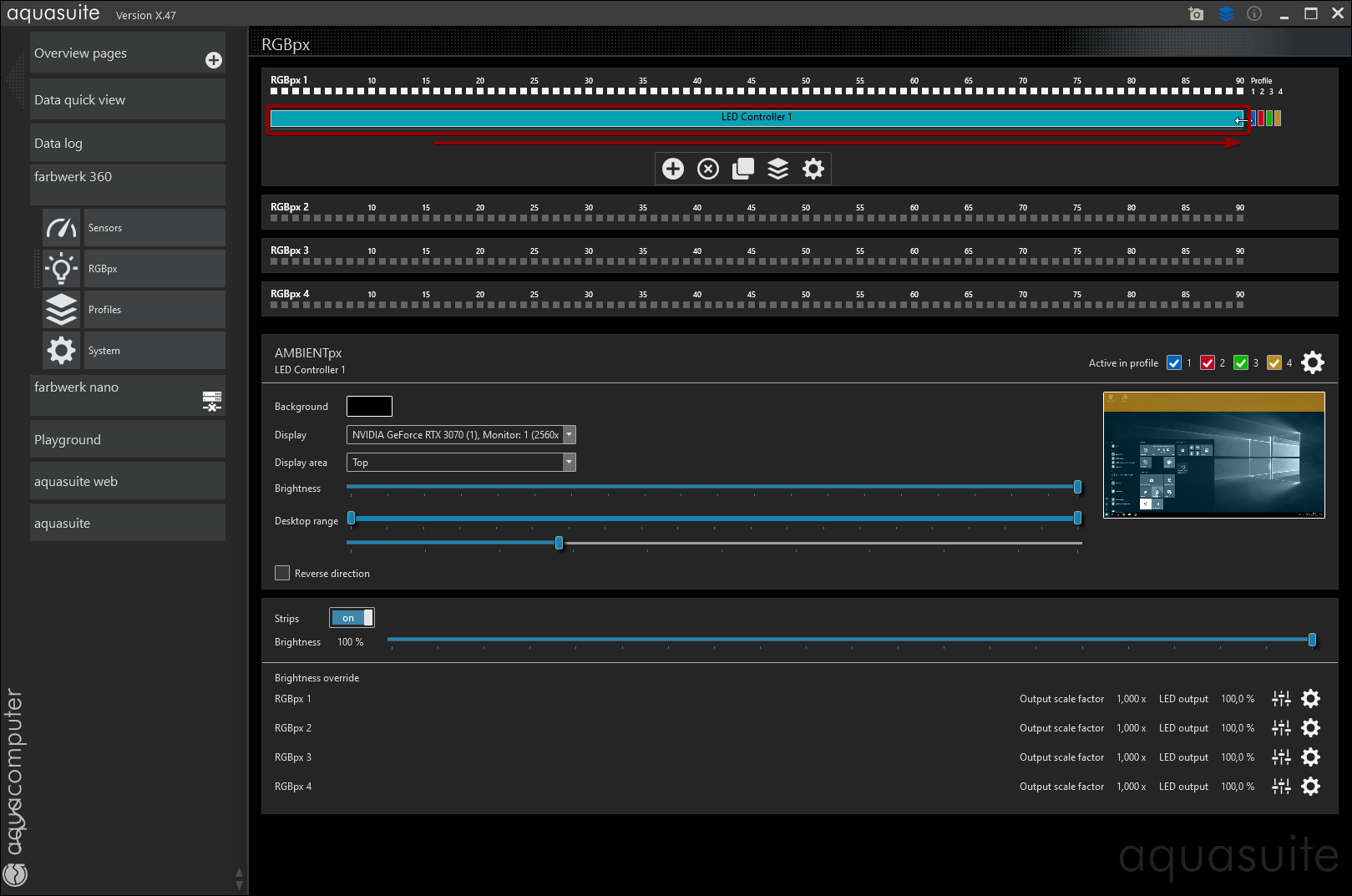

- Enlarge "LED Controller 1" from the default 15 to the max supported 90 leds.
- Click "Background" color box and select black in the color picker that opens, cofirm by clicking the "checkmark"-icon.

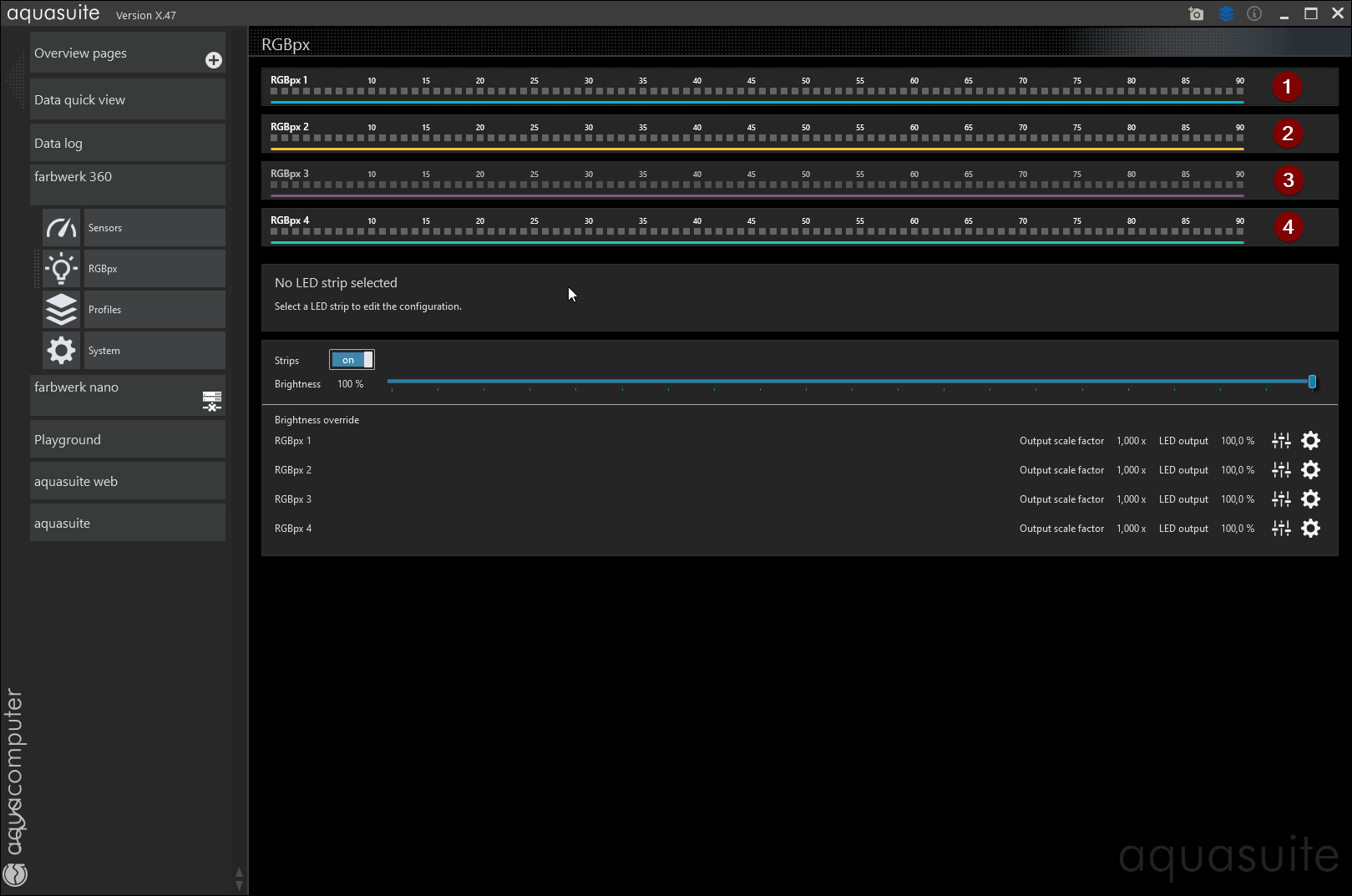

- Repeat the steps above for "RGBpx 2", "RGBpx 3" and "RGBpx 4" (only applies to Farbwerk 360 as the Nano only has one channel).
- Select "auqasuite" -> "Service" in the left main menu, click "Stop service" and quit the app after that by clicking the top right "X".
- (Re-)start SignalRGB and setup your components.
