SONiX Flasher

Instructions for flashing a SONiX keyboard with Signal RGB Firmware, for this guide, we will be using the Redragon K556:

You are responsible if you brick your keyboard!

Note: This will override any custom keymaps you have made!

Once you flash this firmware, there is no going back. The keyboard will no longer be compatible with its original application!

1. Download the latest firmware and plugin from here: https://github.com/SRGBmods/QMK-Binaries/
2. Download Sonix Flasher from here: https://github.com/SonixQMK/sonix-flasher/releases/download/v0.2.5/flasher-win.zip
3. Create a new folder and extract the firmware and the Sonix Flasher into the newly created folder.

4. Navigate to the Sonix Keyboard Flasher folder, and open Sonix Keyboard Flasher.

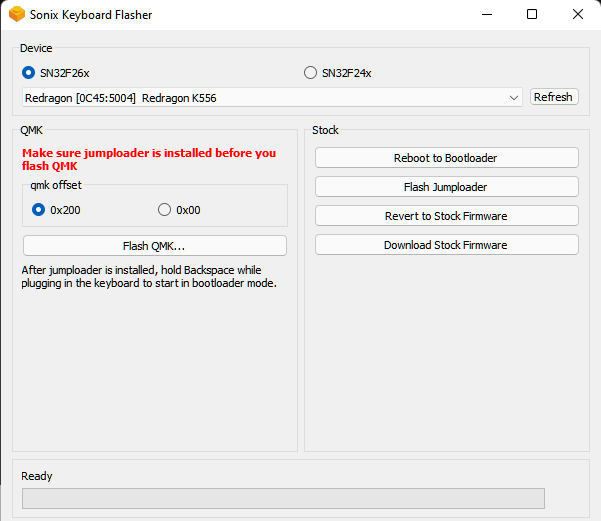

5. You will be greeted with the screen below. By default, device is set to SN32F26x and qmk offset is set to 0x200. CHANGE THE DEVICE AND QMK OFFSET TO YOUR SPECIFIC DEVICE OPTIONS. SEARCH ONLINE FOR THIS
6. FAILURE TO DO SO WILL RESULT IN A BRICKER BOARD
7. FAILURE TO DO SO WILL RESULT IN A BRICKER BOARD
8. FAILURE TO DO SO WILL RESULT IN A BRICKER BOARD

6. The Sonix Keyboard Flasher window should now reflect the screenshot below with your specific settings to Device and QMK Offset. If it does, press the Reboot to Bootloader button. You should hear a windows disconnect and reconnect sound. If you do not, click the Reboot to Bootloader button again.

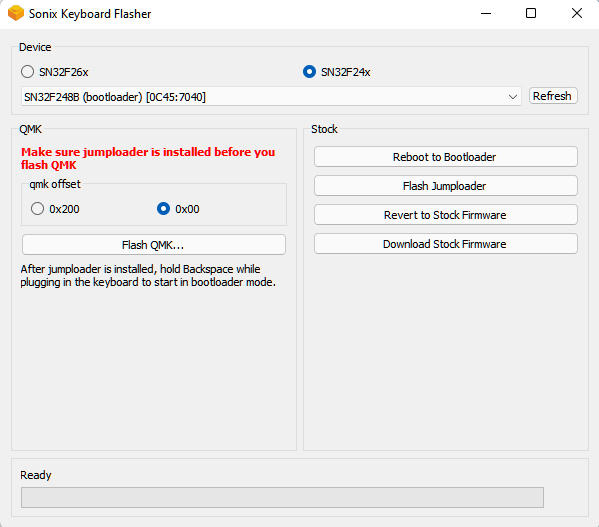

7. Click the Refresh button next to the device dropdown. If the keyboard was successfully booted into bootloader mode, you will now see a device with the word (bootloader) next to it.

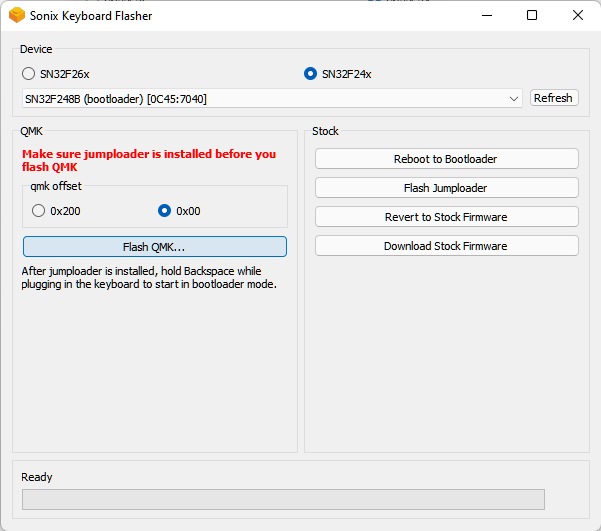

8. Click the Flash QMK button (ignore the warning as it does not apply to this board).

9. Navigate to the folder and select the firmware for your specific board.

10. Ensure that you have chosen the correct firmware for your board, then click Open. The keyboard will begin flashing the QMK firmware. *DO NOT UNPLUG THE KEYBOARD DURING THIS PROCESS. * When the flashing process is complete, the Sonix Flasher will show finished for the flashing status, the keyboard will reboot and show a default rainbow effect.

11. You should be good to go now and your device will show up on the Devices list.
